2 lane Art Race Track by M.M.

“BIG 2 LANE”
ART-RACE-TRACK
2009 – 2017
built by Martin Markeli

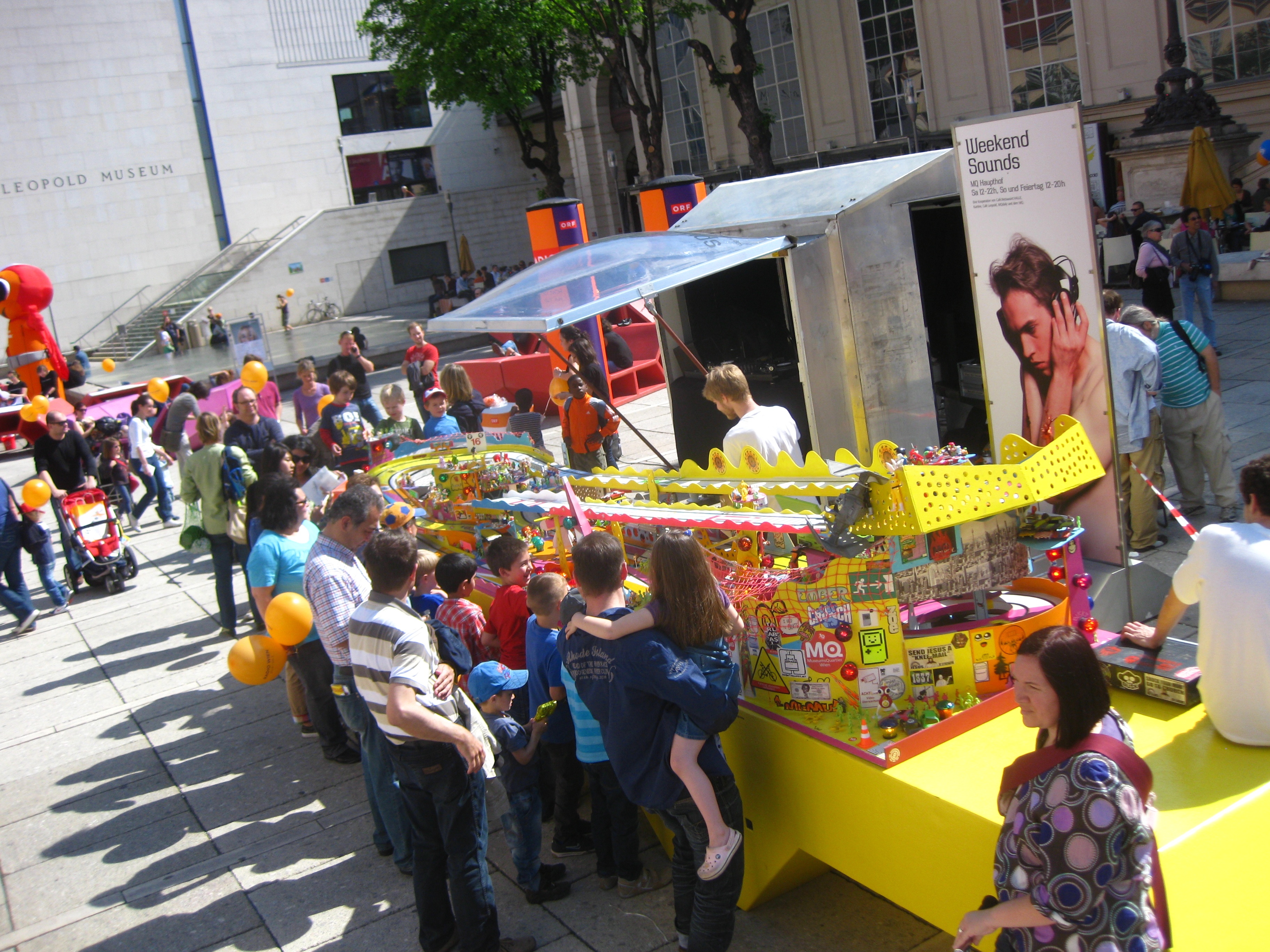

at MuseumsQuartier Vienna

Analog Electronic Racetracks? Yes, but at the same time exciting pieces of art, playable light objects even on the wall of your
living room. Each artracetrack is a unique creation, completely hand produced by Martin Markeli in his Viennese studio.

History Exhibit
2009 : summer at MuseumsQuartier / VIENNA / 6may-29aug
2010 : summer at MuseumsQuartier / VIENNA / 8may-30aug
2011 : summer at MuseumsQuartier / VIENNA / 8may-30aug
2011 : horizont soccer cup / VIENNA
2012 : summer at MuseumsQuartier / VIENNA / 8may-30aug
2014 : embedded world 2014 / CODICO / Nuernberg
2014 : electronica 2014, / CODICO / Munich 26th International Trade Fair for Electronic Components,
2015 : Cultiva Hemp fair / vienna /austria 2–4 october 2015
2015 : cannafest Prag / czech republic 6–8 november 2015

2017 : get together MuseumsQuartier  06-09-2017

1560 TOTAL HOURS OF WORK /
upgrade track 4 times (race seasons at MuseumsQuartier )

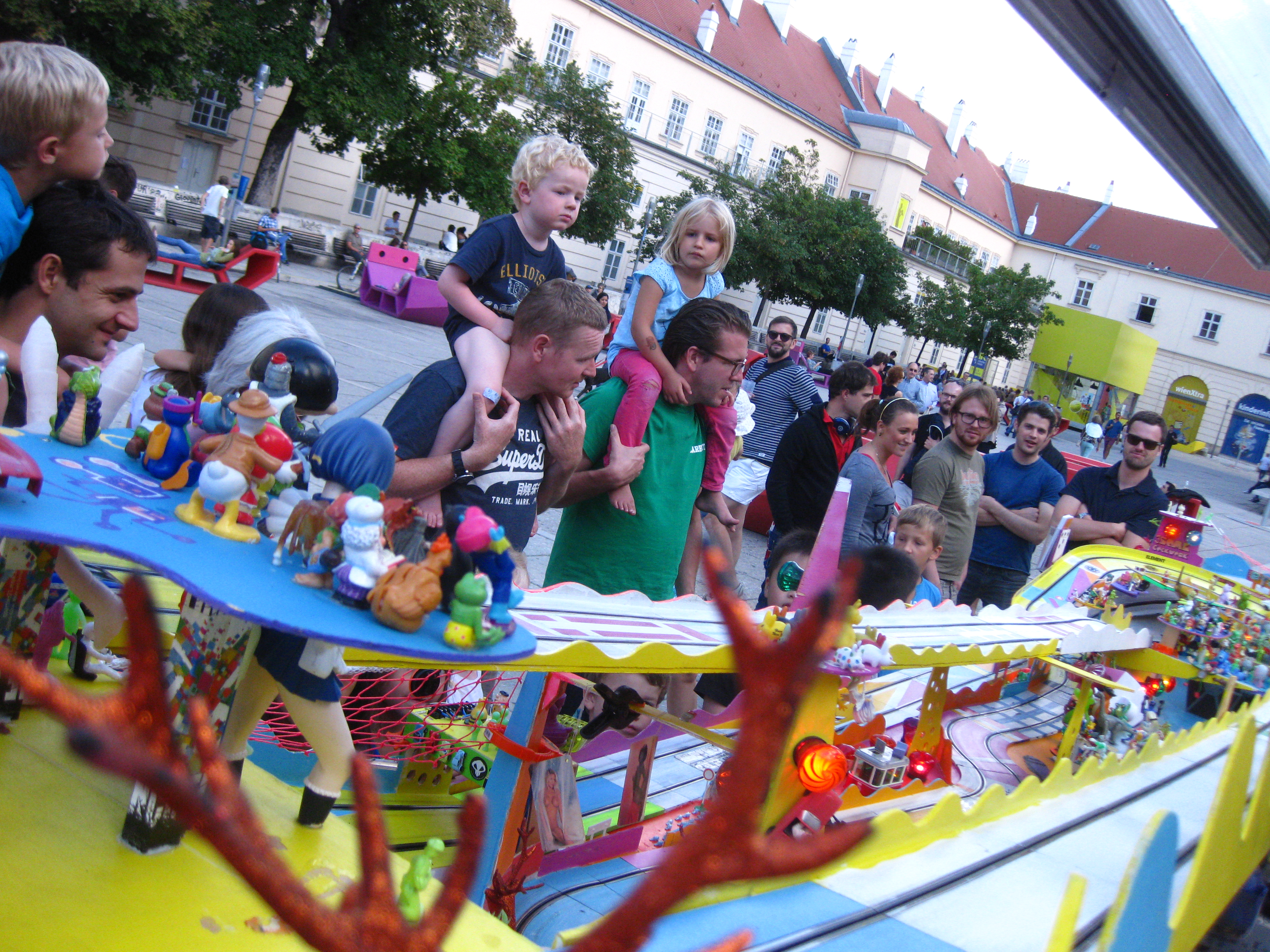

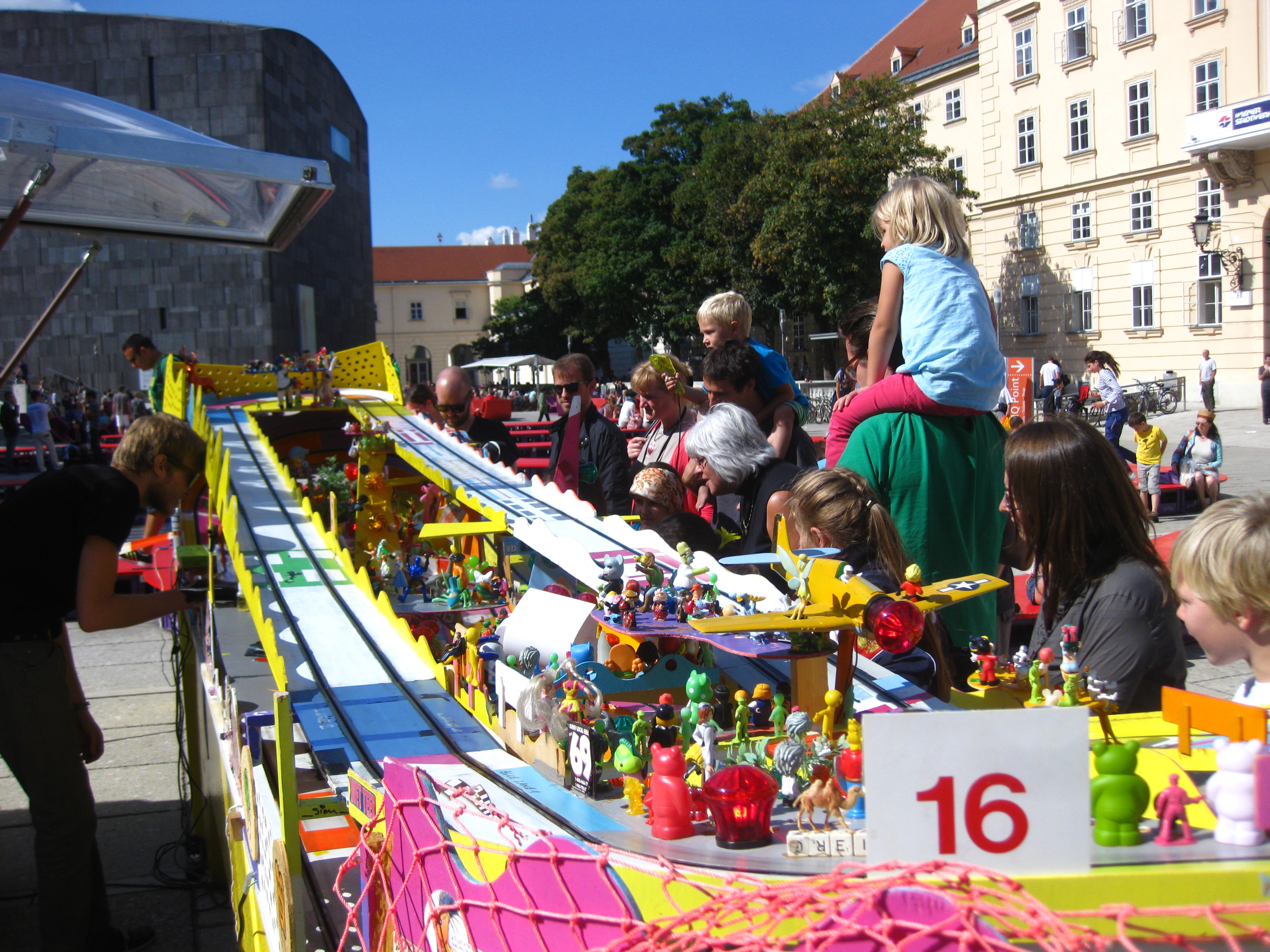

more then 15000 people raced on this track , 22000 true raced km
TRACK FEATURES

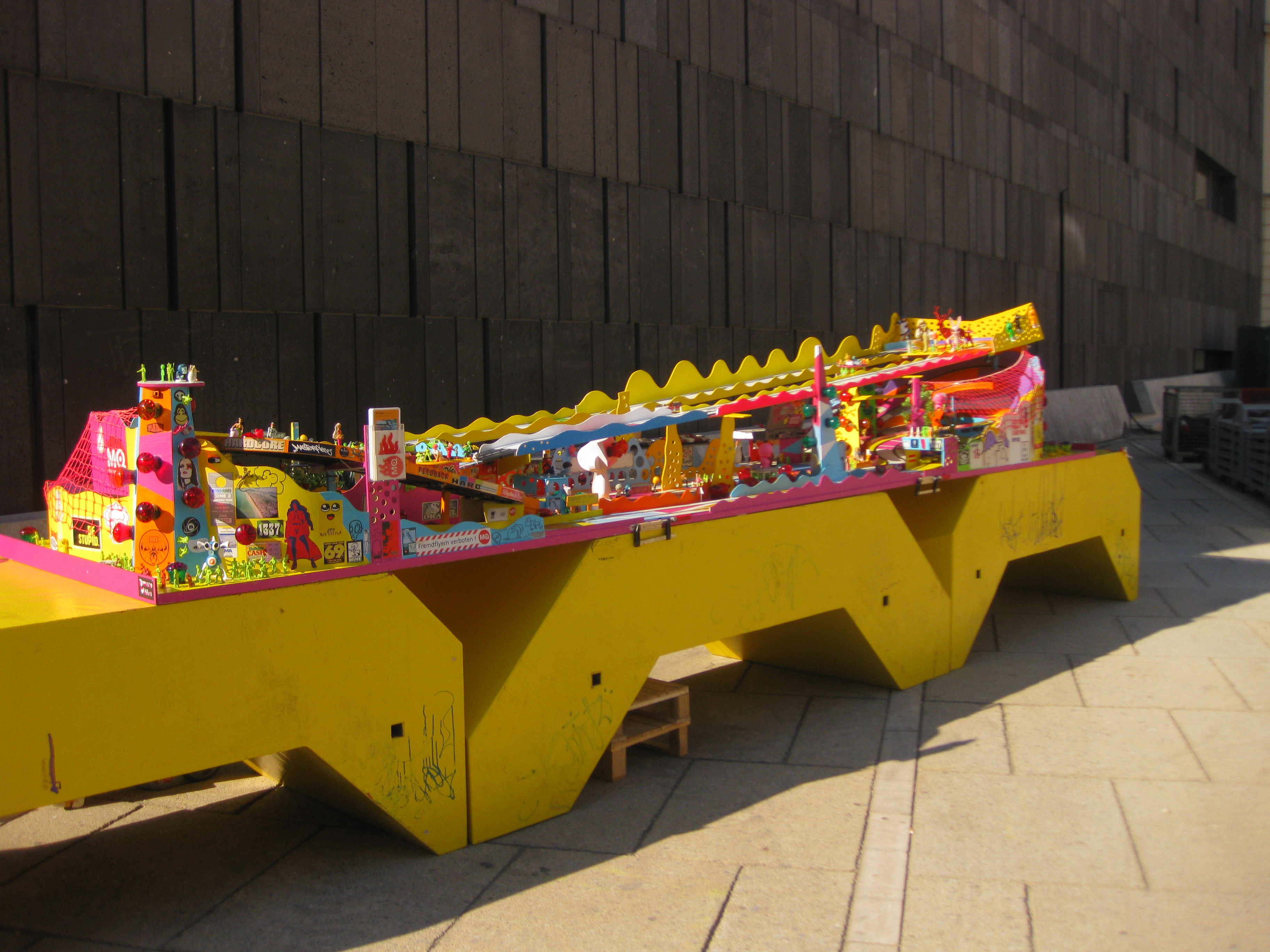

TABLE SIZE /
1 ) MODUL 1 + MODUL 2 / 3720mm ,wide 1200mm
2 ) MODUL 1 + MODUL 2 + MODUL 3 / / length 4720mm ,wide 1200mm
TRACK LENGTH
Total lane 1 / 32 meter
Total lane 2 / 33,5 meter
LAPTIMING
LapTimer 2000 is a small MS Windows program that will count and time laps on any scale slot car track. Laps are timed with 1/1000 of a second accuracy.
Lap Timer 2000 includes hardware interfaces for the Joystick Game Pad, Parallel Printer Port, Keyboard and the RS-232 Serial Communications . A single race or practice session can record up to 4096 laps per lane.
The current lap time for each lane is displayed using a large 90 point font to facilitate easy viewing from across a room. The current lap time displayed for each lane is updated each time a slot car passes over the lap counter track. The current lap number will also be updated when a slot car passes over the lap counter.

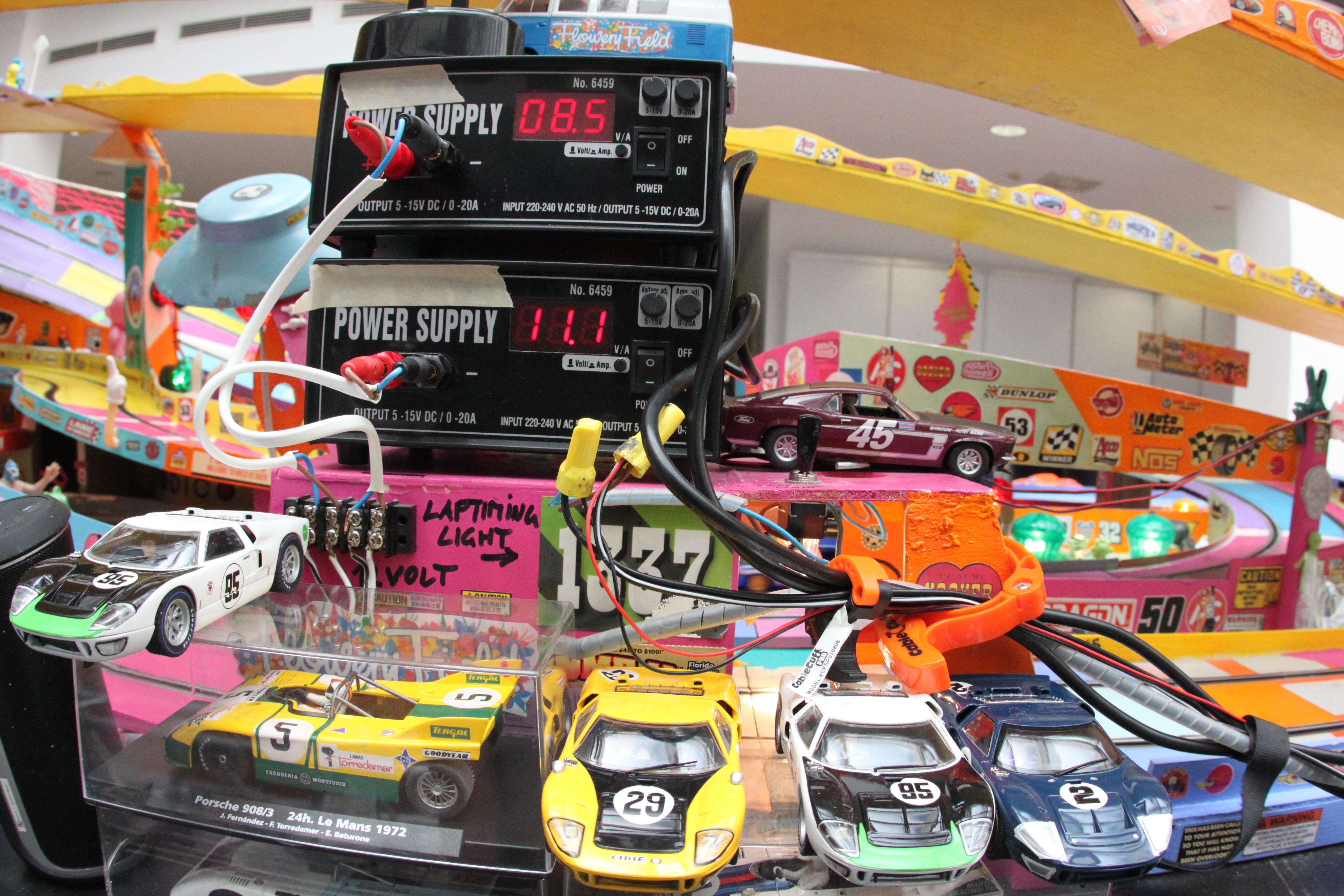

POWER SUPPLY
2 Graupner 100 — 240 Vac Power supply 300 W (5 — 15 Vdc 0 — 20 A)
Output power 300 W
Input voltage 100 — 240 Vac
Output voltage 5 — 15 Vdc
Output current 0 — 20 A
2 Parma Hand Control / 45 Ohm Plus Hand Control
Parma is without question the premier manufacturer of after-market slot car hand controllers. Parma has been building controllers for all scales of slot car racing for over 35 years
The Parma Economy hand controller uses a single-barrel wire-wound power resistor, and a completely enclosed controller body. The handle is molded in tough Lexan,
MOTOR BRAKING
/ Motor braking will allow your slot car to stop much more quickly. Normally, without motor braking, your slot car will continue to roll after power is removed from the motor, but with a motor braking circuit your slot car will stop much faster. This will allow you to drive deeper into a turn before slowing.

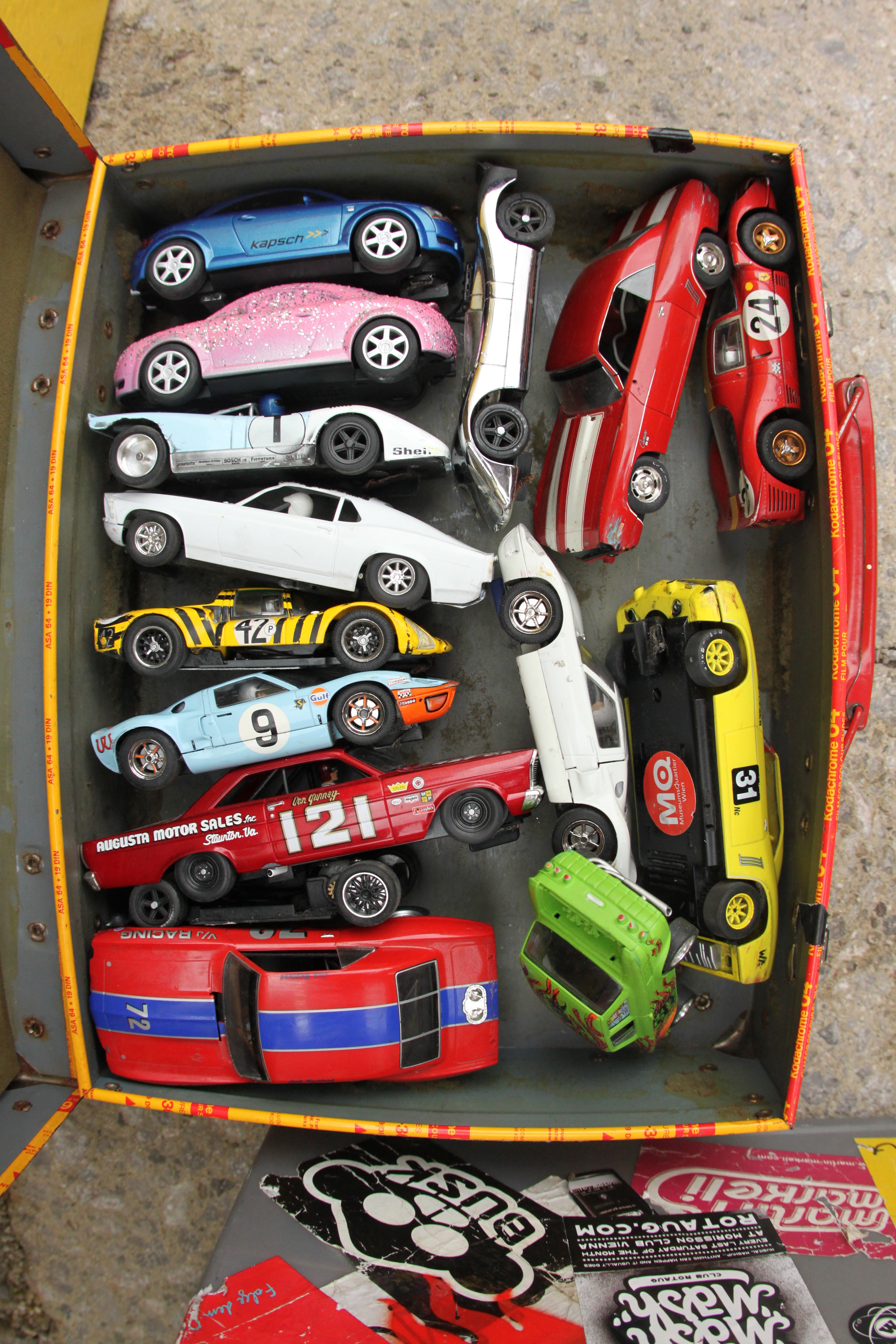

1/32 Analog Slot Cars — Camaro ‘69
Front axle width: 54 mm
Front tire diameter: 19 mm
Front wheel width: 8 mm
Gear ratio: 11/36
Magnatraction
Motor orientation: Sidewinder, Rear wheel drive.
Motor: Mabuchi FC130, 18,000 rpm
Overall length: 150 mm
metal axle ball bearings
Rear axle width: 54 mm
Rear tire diameter: 20 mm
Rear wheel width: 8 mm
Self centering guide blade
Weight: 95 mg
Wheelbase: 85 mm
